Planar Silicon Structure K2600G/DB260/K260B Bilateral Voltage Triggered Switch SIDAC Diode

Model NO. : K2000G

Structure : Planar

Material : Silicon

Transport Package : Carton

Specification : Through Hole

Trademark : JF

Origin : China

HS Code : 85411000

Supply Ability : 10000000000piece/Year

Place of Origin : China

Certification : ISO9001:2015, ISO14001:2015, IATF16949

MOQ : 3,000 Pieces

Price : Negotiable

Delivery Time : Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal

Contact Now

SIDAC Bilateral Voltage triggered Switch
Electronics Component

Part Number: DB260R/ DB260B/ DB260S/ DB260K

Major Parameter:

Type	IT	VDRM	VBO		IDRM	IBO	IH		VTM	ITSM	Rs	dv/dt	di/dt	Outline
	Max	Min	Min	Max	Max		Typ	Max			Min	Min	Typ
	A	Typ	V	V	μA	μA	mA	mA	V	A	KΩ	V/μs	A/μs
DB260R	1	220	240	270	5	10	40	100	1.5	20	0.1	1500	150	R-1
DB260B	1	220	240	270	5	10	40	100	1.5	20	0.1	1500	150	DO-15
DB260B	1	220	240	270	5	10	40	100	1.5	20	0.1	1500	150	SMA
DB260K	1	220	240	270	5	10	40	100	1.5	20	0.1	1500	150	SOD-123FL

Brand: JF logo
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

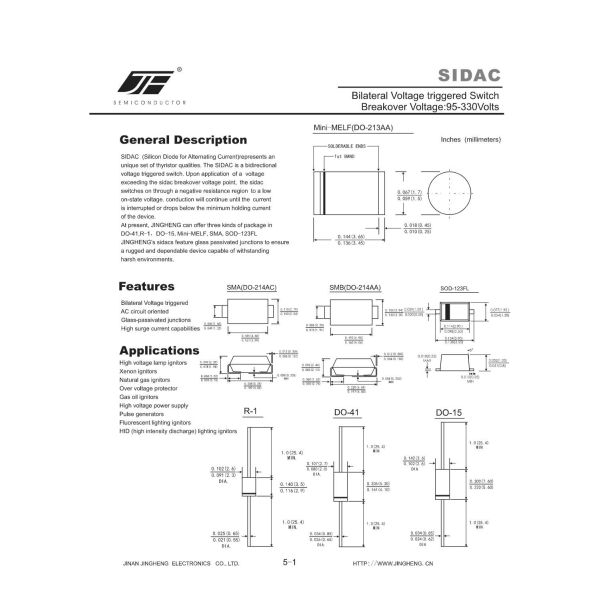

General Description:
SIDAC (Silicon Diode for Alternating Current)represents an unique set of thyristor qualities. The SIDAC is a bidirectional voltage triggered switch. Upon application of a voltage exceeding the sidac breakover voltage point, the sidac switches on through a negative resistance region to a low on-state voltage. conduction will continue until the current is interrupted or drops below the minimum holding current of the device. At present, JINGHENG can offer three kinds of package in DO-41/ R-1/ DO-15/ Minimelf/ SMA/ SOD-123FL. JINGHENG's sidacs feature glass passivated junctions to ensure a rugged and dependable device capable of withstanding harsh environments.
Features:
Bilateral Voltage triggered
AC circuit oriented
Glass-passivated junctions
High surge current capabilities
Applications:
High voltage lamp ignitors
Xenon ignitors
Natural gas ignitors
Over voltage protector
Gas oil ignitors
High voltage power supply
Pulse generators
Fluorescent lighting ignitors
HID (high intensity discharge) lighting ignitors
