BRIDGE RECTIFER DIODE DB201S/DB202S/DB203S/DB204S/DB206S/DB207S with DBS Package

Model NO. : DB207S

Luminous Intensity : None Luminance

Color : None Luminance

Structure : Alloy

Material : Silicon

Transport Package : DBS

Specification : BRIDGE RECTIFER DIODE

Trademark : JF, JH

Origin : China

HS Code : 85411000

Supply Ability : 10000000000piece/Year

Package Size : 20.00cm * 40.00cm * 15.00cm

Package Gross Weight : 8.000kg

Place of Origin : China

Certification : ISO9001:2015, ISO14001:2015, IATF16949

MOQ : 3,000 Pieces

Price : Negotiable

Delivery Time : Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal

Contact Now

SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Electronics Component

Part Number: DB201S /DB202S/DB203S/DB204S/DB206S/ DB207S

Major Parameter:

Type	VRRM	IF	IR(25ºC)	IR(100ºC)	IR(125ºC)	VF	Trr	Outline
Type	V	A	μA	μA	uA	V	nS	Outline
DB202S	50	2.0	10		500	1.1		DBS
DB202S	100	2.0	10		500	1.1
DB203S	200	2.0	10		500	1.1
DB204S	400	2.0	10		500	1.1
DB205S	600	2.0	10		500	1.1
DB206S	800	2.0	10		500	1.1
DB207S	1000	2.0	10		500	1.1

Brand: JF / JH

Package: DBS package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

Plastic package has Underwriters Laboratory Flammability

Classification 94V-0

Glass passivated chip junction

Rating to 1000V PRV

Ideal for printed circuit board

High temperature soldering guaranteed:260 C/10 seconds at terminals

Component in accordance to RoHS 2011 65 EU

Application:
Used in power supply, lighting, auto, home appliance field

BRIDGE RECTIFER DIODE DB201S/DB202S/DB203S/DB204S/DB206S/DB207S with DBS Package

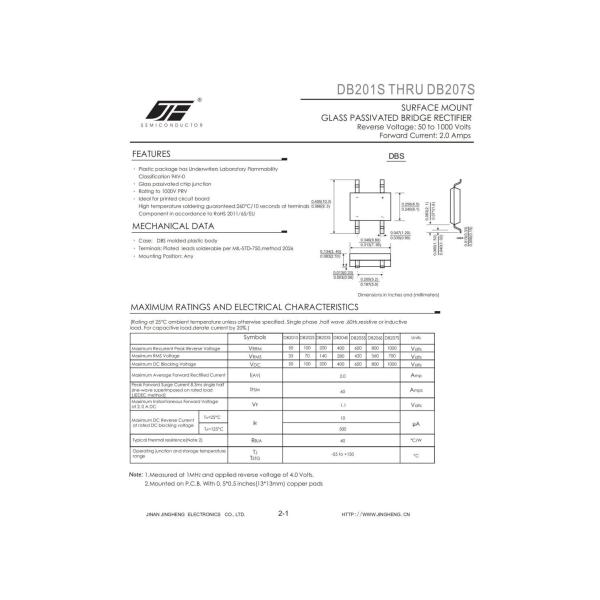

BRIDGE RECTIFER DIODE DB201S/DB202S/DB203S/DB204S/DB206S/DB207S with DBS Package Images
