8A Super Fast Rectifier Diode MUR820M2/MUR840M2/MUR860M2/MUR880M2/MUR8120M2 for Needs

Model NO. : MUR860M2

Luminous Intensity : NO LIGHT

Color : NO LIGHT

Structure : Alloy

Material : Silicon

TYPE : FAST REVOERY

CURRENT : 8A

VOLTAGE : 200-1200V

LOGO : JF OR JH

Transport Package : Tube

Specification : High Power Package

Trademark : JF, JH

Origin : China

HS Code : 85411000

Supply Ability : 10000000000piece/Year

Package Size : 5.58cm * 1.48cm * 0.38cm

Package Gross Weight : 0.002kg

Place of Origin : China

Certification : ISO9001:2015, ISO14001:2015, IATF16949

MOQ : 3,000 Pieces

Price : Negotiable

Delivery Time : Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal

Contact Now

LOW VF SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component

Part Number: MUR820M2/MUR840M2/MUR860M2/MUR880M2/MUR8120M2

Major Parameter:

Type	VRRM	IF	IR(25ºC)	IR(100ºC)	IR(125ºC)	VF	Trr	Outline
Type	V	A	μA	uA	uA	V	nS	Outline
MUR820M2	200	8.0	5.0		50	0.975	35	TO-252
MUR840M2	400	8.0	5.0		50	1.3	35
MUR860M2	600	8.0	5.0		50	1.7	35
MUR880M2	800	8.0	5.0		50	2.4	45
MUR8120M2	1200	8.0	5.0		50	3.30	50

Package: TO-252
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

· Plastic package has Underwriters Laboratory Flammability Classification 94V-0

· Low Reverse Leakage Current

· High surge capability

· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case

· Fast switching for high efficiency

· Low forward voltage drop

· Component in accordance to RoHS 2011 65 EU

Application:
Used in power supply, lighting, auto, home appliance field

8A Super Fast Rectifier Diode MUR820M2/MUR840M2/MUR860M2/MUR880M2/MUR8120M2 for Needs

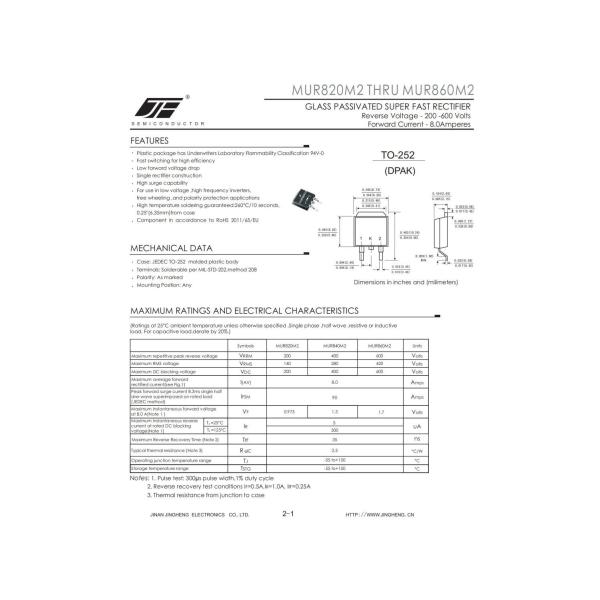

8A Super Fast Rectifier Diode MUR820M2/MUR840M2/MUR860M2/MUR880M2/MUR8120M2 for Needs Images
