Silicon MURS8120 Hyperfast Diode Soft Recovery for High Frequency Applications

Model NO. : MURS8120

Structure : GPP Chip

Material : Silicon

Transport Package : Tube

Specification : High Power Package

Trademark : JF, JH

Origin : China

HS Code : 85411000

Supply Ability : 10000000000piece/Year

Package Size : 5.58cm * 1.48cm * 0.38cm

Package Gross Weight : 0.002kg

Place of Origin : China

Certification : ISO9001:2015, ISO14001:2015, IATF16949

MOQ : 3,000 Pieces

Price : Negotiable

Delivery Time : Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal

Contact Now

Hyperfast Diode with Soft Recovery

Reverse Voltage - 1200 Volts

Forward Current - 8.0Amperes

Part Number: MURS81200

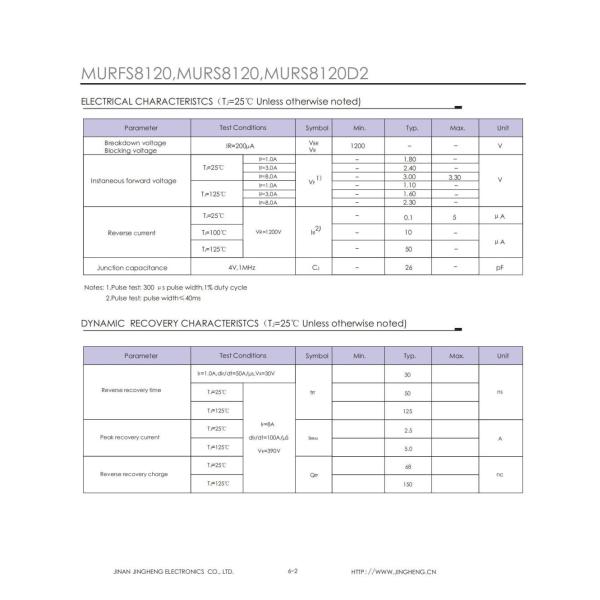

Major Parameter:

Type	VRRM	IF	IR(25ºC)	IR(100ºC)	IR(125ºC)	VF	Trr	Outline
Type	V	A	μA	uA	uA	V	nS	Outline
MURS860	600	8.0	5.0		50	2.3	25	TO-220AC
MURS8120	1200	8.0	5.0		50	3.30	50	TO-220AC

Package: TO-220AC
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

· Plastic package has Underwriters Laboratory Flammability Classification 94V-0

· Single rectifier construction

· High surge capability

· For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications

· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case

· Fast switching for high efficiency

· Low forward voltage drop

· Component in accordance to RoHS 2002 95 EC and WEEE 2002 96 EC

Application:
Used in power supply, lighting, auto, home appliance field
